WATER SCREEN
DATA SHEET
What we provide
This is the list of materials that we provide.
Structures
- External hydraulic pump with certified panel
- Nozzle for floating or free-standing effect
- Plumbing material to connect to running water
Note
- To assess water performance, the space must be accessible and the water level must be less than 20 cm
- If the location allows it, it is possible to install a stage at water surface level in swimming pools or fountains, to be calculated as a separate cost
- It is programmable to turn the water screen on and off and can be done at any time during the show
- The screen reaches a maximum diameter of 12m that can be reduced if necessary
- Optimal projection area: 10x6m
You can choose between
Single Screen
A single fan of water with a maximum coverage of 12m in width.

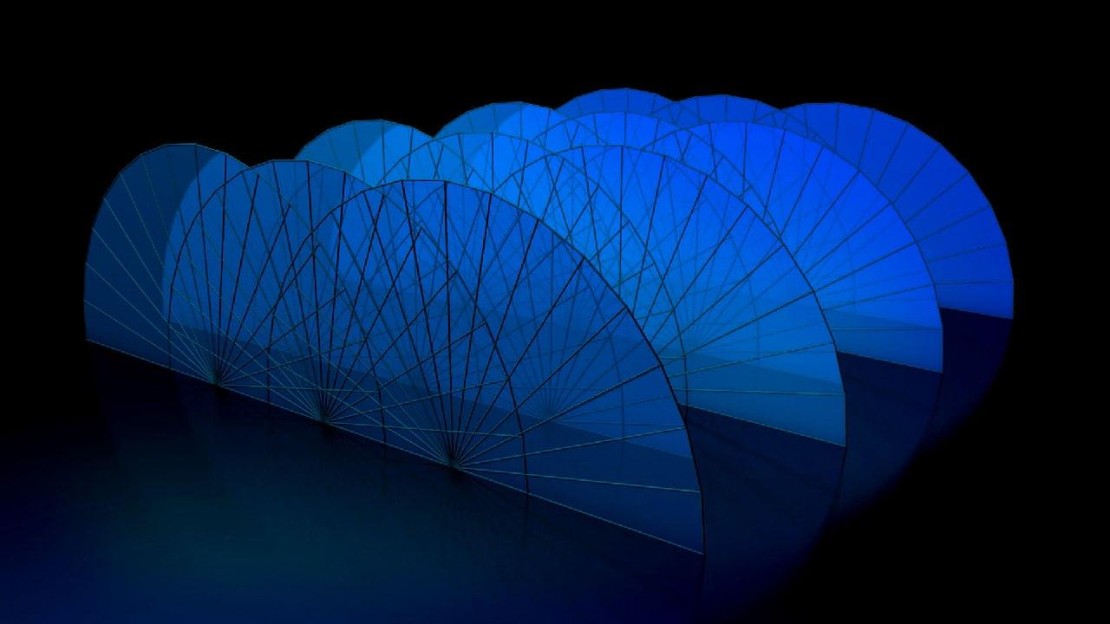

Multiple Screens
Fans of water on multiple levels up to 4 levels of screens that create an effect of overlapping in depth.
Dimensions: height 3m, width 9m approximately for each line.
Intensity
Spray of mist or fountain screen effect.
Excluded
This is the list of materials at your expense to be requested from the technical provider that will take care of the preparation.
Structures
- Eventual water-surface stage
Supply
- A minimum of 18Kw of current at 400 volts is required
Described here are a basic indications and may vary according to the location or type of intervention requested. If it is not possible to ensure the requested material, we will quote the supply separately.
